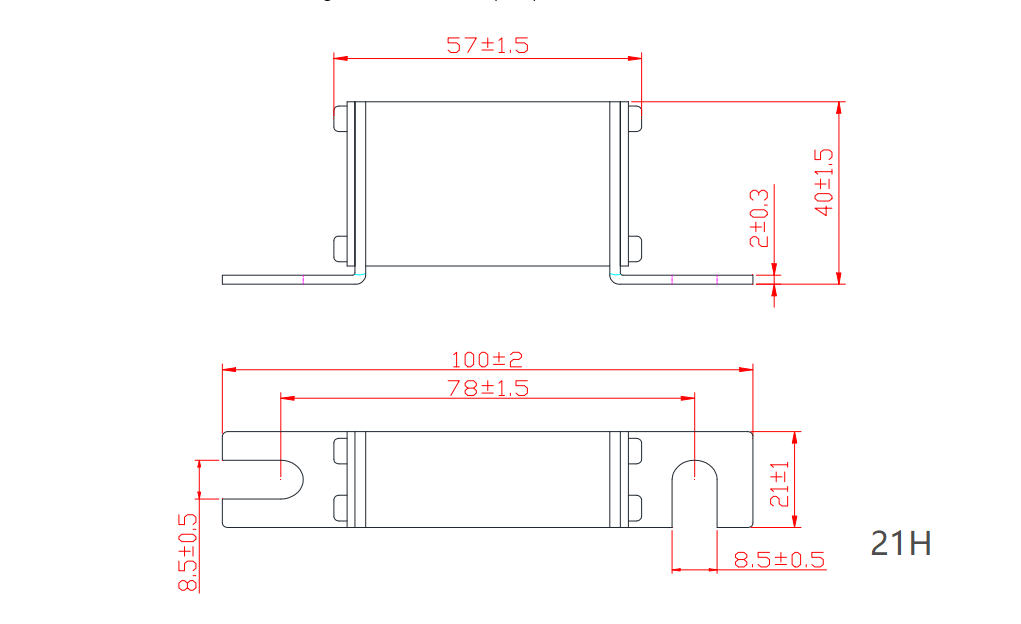

結構尺寸圖Construction Figure?& Dimension?(mm)

| 編號No. | 名稱Part | 材料Material |
| 1 | 觸角 Palping Foot | 銅錫合金 Copper tin alloy |
| 2 | 蓋板 Inner Cap | 不銹鋼板 Stainless steel sheet and plate |
| 3 | 管體 Tube body | 陶瓷Ceramic |
| 4 | 緊固經系Firing through the system | 不銹鋼 Stainless steel |
| 5 | 可熔體 Fusible Element | 銀銅合金 Silver-copper alloy |
| 6 | 消弧劑Arc extinguishing agent | 石英砂Quartz Sand |
?
分斷能力Breaking Capacity
熔斷體的分斷能力應能達到下表規定的相應的各種安全認證的分斷能力要求。保險絲分斷電路后,保險絲管不應破裂、銅帽飛脫、且銅帽兩端的絕緣電阻不小于0.1MΩ。
| 額定電壓 ?Rated Voltage | 額定電流 Rated Current | ?分斷電流 Breaking Capacity |
750V DC | 250A | DC 50KA |

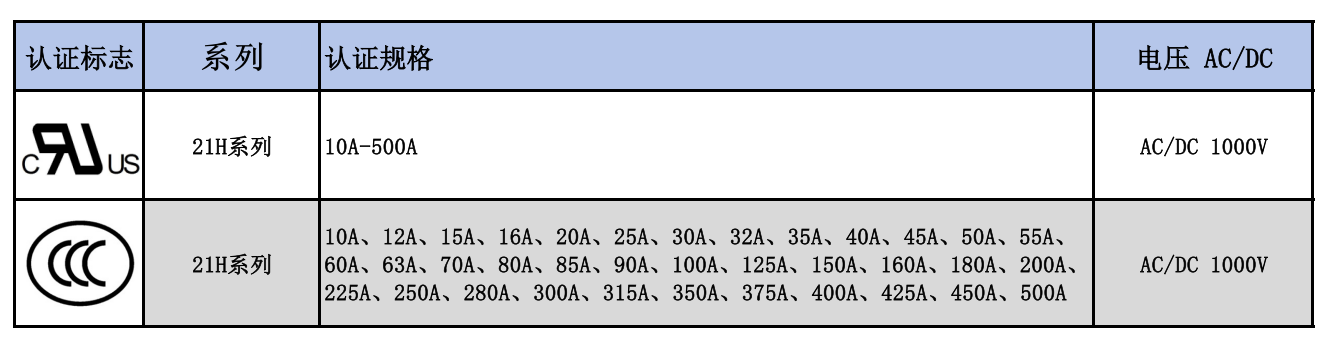

Approvals認證
