測試條件 Test Conditions
所有特性測試,在環(huán)境溫度30℃±3℃條件下進行,在此期間溫度變化不允許達到+5℃和到極限范圍。
All electrical tests are conducted at ambient temperature of?30℃±3℃.??The ambient temperature is not allowed to vary more than 5℃ during the test, and must be within these limits.
分斷能力Breaking Capacity
熔斷體的分斷能力應能達到下表規(guī)定的相應的各種安全認證的分斷能力要求。保險絲分斷電路后,保險絲管不應破裂、銅帽飛脫、且銅帽兩端的絕緣電阻不小于0.1MΩ。
| 額定電壓 ?Rated Voltage | 額定電流 Rated Current | ?分斷電流 Breaking Capacity |
| 690V? | 1A-63A | DC 50KA |
技術數據Techinical Data
| 編號 Part Number | 額定電流 Current Rating (Ampers) | 能量積分 Energy Integrals I2T(A2S) | 功耗 Power Loss(W) |
| 14C-2200-G | 20 | 448 | 12.7 |
| 14C-2300-G | 30 | 787.2 | 7.5 |
| 14C-2400-G | 40 | 5484 | 4.44 |
| 14C-2630-G | 63 | 26523 | 7.16 |

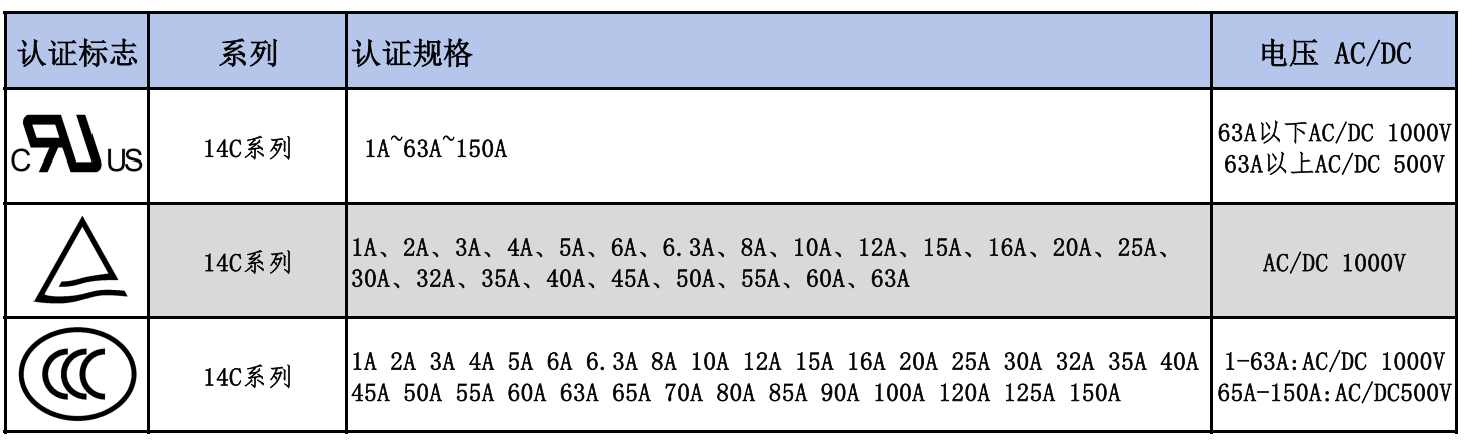

Approvals認證(○ Pending表示認證中 ● Approvals表示已獲認證)
